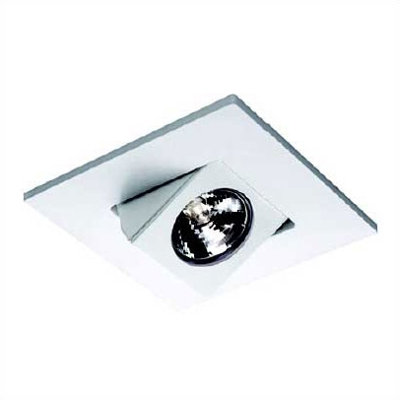

WAC 4" Low Voltage Recessed Elbow Directional Spotlight with Trim

W.A.C. low voltage trims utilize MR16 lamps which offer superior color rendering, as compared to standard incandescent lamps. With a wide array of accessories and adjustability up to 30 degrees with a 350 degree rotation, design flexibility is a plus as these lovely trims will fulfill your lighting needs to give your home a desirable look. Adjustable aiming capabilities provide versatility for a wide range of accent and task applications.

FEATURES:

• Low Voltage Elbow Square Directional Spotlight
• Available in various finishes: Black, Brushed Nickel or White
• Die-cast construction
• Adjustable up to 30 degrees
• Rotates 350 degrees
• Optional color lenses (regular or dichroic) available in various colors: Golden Amber, Blue, Green, Red or Yellow
• Optional patterned and protective lenses available
• Optional UVF lens for reducing ultraviolet light to protect artwork and fabric from fading
• Accomodates an MR16 halogen bulb; 50 or 75 watt maximum
• Note: 50 watt fixtures HR-8401E, HR-8401H, HR-8402E, HR-8402H or HR-8403H housing adaptable; 75 watt fixtures HR-8402HL housing adaptable
• Overall dimensions: 1.1875" H x 5.125" W x 5.125" D

Low Voltage New Construction Air Tight Housing with Magnetic Transformer Features:

• New Construction Housing with Magnetic Transformer
• Suitable for direct contact with insulation
• Complies with WSEC code for airtight fixtures when used with gasket kit - RGK (ordered separately)
• 11 knockouts on junction box
• J-box and transformer accessible through ceiling opening
• UL listed for through-branch circuit wiring
• 50 watt maximum
• Overall dimensions: 10.75" W x 7.125" D

Low Voltage New Construction Housing with Integral Magnetic Transformer Features:

• New Construction Housing with Integral Magnetic Transformer
• Snap-out magnetic transformer
• 11 knockouts on junction box
• J-box and transformer accessible through ceiling opening
• UL listed for through-branch circuit wiring
• 3" clearance on all sides must be maintained when insulation is present
• 50 - 75 watt maximum
• Overall dimensions: 7.25" W x 6.5" D

Low Voltage New Construction Housing with Snap Out Magnetic Transformer Features:

• New Construction Housing with Integral Magnetic Transformer
• Snap-out magnetic transformer
• 11 knockouts on junction box
• J-box and transformer accessible through ceiling opening
• UL listed for through-branch circuit wiring
• 3" clearance on all sides must be maintained when insulation is present
• 50 watt maximum
• Overall dimensions: 7.25" W x 5.5" D

Low Voltage Remodeling Housing for Magnetic Transformer Features:

• Remodeling Can for Magnetic Transformer
• Integral magnetic transformer
• Rated for chain wiring
• Snap-out magnetic transformer
• 3" clearance on all sides must be maintained when insulation is present
• 50 watt maximum
• Overall dimensions: 4.125" W x 5.5" D

Low Voltage Remodeling Housing with Integral Electronic Transformer Features:

• Remodeling Housing with Integral Electronic Transformer (120V/12V)
• Auto-reset electronic transformer with soft start technology for lamp life maximization
• Rated for chain wiring
• J-box and transformer accessible through ceiling opening
• 3" clearance on all sides must be maintained when insulation is present
• 50 watt maximum
• Overall dimensions: 4.8125" W x 4.25" D

Low Voltage New Construction Housing with Integral Electronic Transformer Features:

• New Construction Housing with Integral Electronic Transformer (120V/12V)
• Auto-reset electronic transformer with soft start technology for lamp life maximization
• 11 knockouts on junction box
• Rated for chain wiring
• UL listed for through-branch circuit wiring
• 3" clearance on all sides must be maintained when insulation is present
• 50 watt maximum
• Overall dimensions: 5.75" W x 4.25" D

NOTE: Track Lighting is not universal. W.A.C. Lighting products can only be used with W.A.C. Lighting products or warranty is void.
