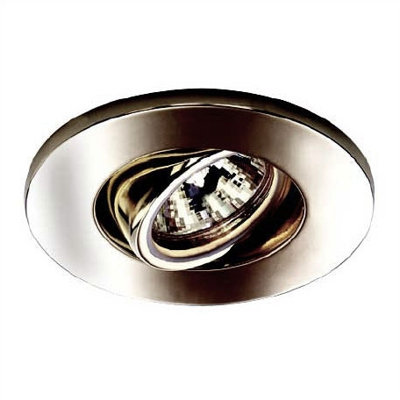

WAC 3" Low Voltage Die Cast Gimbal Ring Recessed Lighting Trim

W.A.C. low voltage die cast trims utilize MR16 lamps which offer superior color rendering, as compared to standard incandescent lamps. With a wide array of accessories and adjustability up to 30 degrees, design flexibility is a plus as these lovely trims will fulfill your lighting needs to give your home a desirable look.

FEATURES:

• Low Voltage Gimbal Ring Recessed Lighting Trim
• Available in various finishes: Black, Brushed Nickel, Polished Brass or White
• Die cast construction
• Smaller scaled trims for better aesthetic without sacrificing light output
• Adjustable up to 25 degrees
• Allows pivot adjustment of 12 degree and 350 degree rotation
• Optional color lenses (regular or dichroic) available in various colors: Golden Amber, Blue, Green, Red or Yellow
• Optional patterned and protective lenses available
• Optional UVF lens for reducing ultraviolet light to protect artwork and fabric from fading
• Accomodates an MR16 halogen bulb; 50 watt maximum
• Note: HR-301E, HR-301M, HR-302E or HR-302M housing adaptable
• Overall dimensions: .75" H x 4.5" Diameter

3" Non-IC Remodeling Housing with Electronic Transformer in Black Features:

• Series 300 Remodeling Housing with Electronic Transformer
• Auto-reset electronic transformer with soft start technology for lamp life maximization
• Rated for chain wiring
• Remodeling housing Non-IC
• J-box and transformer accessible through ceiling opening
• 3" clearance on all sides must be maintained when insulation is present
• Fits on 6" joist ceilings
• Integral electronic transformer (120V/12V)
• 50 watt maximum
• Overall dimensions: 4.8125" W x 6" D

3" Series Non-IC Remodeling Housing with Magnetic Transformer Features:

• Series 300 Remodeling Housing with Magnetic Transformer
• Rated for chain wiring
• Remodeling housing Non-IC
• J-box and transformer accessible through ceiling opening
• 3" clearance on all sides must be maintained when insulation is present
• Fits on 6" joist ceilings
• Integral magnetic transformer (120V/12V)
• 50 watt maximum
• Overall dimensions: 4.1875" W x 6" D

3" Series New Construction Non-IC Housing with Electronic Transformer Features:

• Series 300 New Construction Housing with Electronic Transformer
• Auto-reset electronic transformer with soft start technology for lamp life maximization
• New construction Non-IC housing
• J-box and transformer accessible through ceiling opening
• 3" clearance on all sides must be maintained when insulation is present
• UL listed for through-branch circuit wiring
• Fits on 6" joist ceilings
• Integral electronic transformer (120V/12V)
• 50 watt maximum
• Overall dimensions: 7.125" W x 6" D

3" Series New Construction Non-IC Housing with Magnetic Transformer Features:

• Series 300 New Construction Housing with Magnetic Transformer
• New construction Non-IC housing
• J-box and transformer accessible through ceiling opening
• 3" clearance on all sides must be maintained when insulation is present
• UL listed for through-branch circuit wiring
• Fits on 6" joist ceilings
• Magnetic transformer (120V/12V)
• 50 watt maximum
• Overall dimensions:7.125" W x 6" D

NOTE: Track Lighting is not universal. W.A.C. Lighting products can only be used with W.A.C. Lighting products or warranty is void.
