SKU #: TLG1023

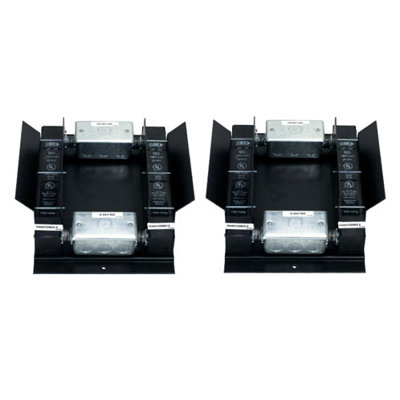

Tech Lighting Two-Circuit MonoRail Dual-Feed Electronic Remote Transformer 300W 12V

(

View all from Tech Lighting

)

FREE 2-Day Delivery
  • Tech Lighting Two-Circuit MonoRail Dual-Feed Electronic Remote Transformer 300W 12V
  • Tech Lighting Two-Circuit MonoRail Dual-Feed Electronic Remote Transformer 300W 12V
  • Tech Lighting Two-Circuit MonoRail Dual-Feed Electronic Remote Transformer 300W 12V
VIEW ALL

1655

Free Shipping
Order in the next and have this item delivered free by ! More

Arrives for Christmas to Woodbridge, NJ 02108 (Change)

Rewards:  Get 3% Back ?

Qty:
 Registry
AllModern Registries
 Wish List
My Saved Lists

Share:

Product Details
Weight & Dimensions
Specifications

Features:

  • Remote electronic transformer
  • This transformer is equipped with fast acting short circuit and overload protection that will safely turn off the system should a short occur
  • Once the short is removed the unit can be reset by simply flipping the wall switch off and back on
  • This transformer must be installed in a remote but accessible location (such as above the ceiling or in a closet)
  • To simplify installation the transformer should be located no more than 20 feet from the run or power feed
  • The electrician will need to supply the proper gauge conductor from the transformer to the power feed location based on distance
  • The dimmer is placed on the line side of the transformer (Consult dimmer manufacturer for specifics)
  • Input Wiring: Can be ordered to hard wire to a junction box or plug in with 16 foot power cord with inline switch, two feet from the plug
  • NOTE: Track Lighting is not universal. Tech Lighting products can only be used with Tech Lighting products or warranty is void.
  • This remote electronic transformer converts standard 120 volt line voltage to 12 volts, providing the necessary voltage for powering a MonoRail, Kable Lite, TwinRail, Wall MonoRail or FreeJack low voltage lighting system
  • This remote electronic transformer can be used to power lamps totaling up to 300 watts
  • Dimmable with a 600 watt low voltage electronic dimmer
  • This transformer provides a single 300 watt output and must be used with a single feed canopy or other power feed option (sold separately)
  • 12 volt output transformers require the use of 12 volt lamps
Show Additional Info

Dimensions:

  • Overall Height - Top to Bottom: 3"
  • Overall Width - Side to Side: 1.8"
  • Overall Depth - Front to Back: 10.5"
  • Overall Product Weight: 2.52lbs

Weights & Dimensions

Additional Weights & Dimensions

  • Overall Height - Top to Bottom: 3"
  • Overall Width - Side to Side: 1.8"
  • Overall Depth - Front to Back: 10.5"
  • Overall Product Weight: 2.52lbs

Features

For Use With: Indoor Lighting
Product Type: Magnetic
Location: Remote Mount
Finish: None
Max Wattage: 300
Voltage Input: 120
Voltage Output: 12
Country of Manufacture: Imported
See something odd? Report it here.

Shipping Info

Free Shipping
Ships to:
Ships via FedEx/UPS (Learn More)
Additional Documents
PDF
Specifications

Questions & Answers

Still have questions about this product? We're here to help

We're sorry, we have no FAQs to display.

Reviews

Tech Lighting Two-Circuit MonoRail Dual-Feed Electronic Remote Transformer 300W 12V

We are sorry, we have no reviews to display

Reference
OUR SKU # TLG1023 This item is also sometimes listed under the following manufacturer numbers: 700AT4X300EL
