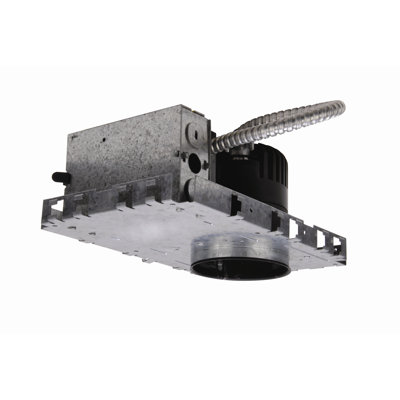

WAC 4.5" LEDme Square Trim Downlight with Optional Housing

Features of LEDme Square Trim Downlight:

• Square trim down light
• Available in white or brushed nickel finish
• Reflector available in black or white finish
• Square open trim
• Fingered retention clips firmly hold trim to housing
• Handles surfaces up to 0.75"
• Deep regression of source produces a very low glare system with 40° cut-off angle
• Full scale dimming to 1%
• Light level for 3000K, 41 foot candles at 5 feet, 16 foot candles at 8 feet
• Narrow flood beam spread and 40° visual cutoff
• Replaceable LED Module
• 50,000 Hour potential life
• UL and cUL listed

Specifications:

• Manufacturer provides a five year warranty
• Overall dimensions: 2.375" H x 4.5" W

Features of LEDme Downlight New Construction IC Housing:

• Downlight new construction non-IC housing
• Available in 3000K or 4500K Color temperature
• Available in 350lm or 400lm Lumens
• LED IC rated new construction housing
• Input Voltage: 120V AC /60Hz
• Power Factor > 0.9
• Dimming with thermal protection
• Load: Max 3W
• Supplied with hanger bars, adjustable from 15'-24 1/2' to accommodate various joist construction and grid sizes
• Can be completely covered with insulation
• Provides 70% average lumen maintenance at 50,000 hrs
• Provided with Push-in wire connector for easy installation
• Accommodate up to a 1" ceiling thickness
• Dimming range from 100% to 1%
• ANSI compliant Warm/Neutral LEDs
• 40° Visual cut off angle
• Replacement modules
• Far more resistant to vibration than incandescent or fluorescent downlights
• Hanger bars include a captive mounting “screw-nail' for ease of installation
• LEDs included
• Suitable for direct contact with insulation
• 3" Clearance on all sides must be maintained when insulation is present
• UL and cUL listed for damp locations

Specifications:

• Manufacturer provides a five year warranty
• Overall dimensions: 5.125" H x 3.875" W x 3.875" D

Features of LEDme Downlight New Construction Non-IC Housing:

• Downlight new construction non-IC housing
• Available in 3000K or 4500K Color temperature
• Available in 350lm or 400lm Lumens
• LED IC rated new construction housing
• Input Voltage: 120V AC /60Hz
• Power Factor > 0.9
• Dimming with thermal protection
• Load: Max 3W
• Supplied with hanger bars, adjustable from 15'-24.5' to accommodate various joist construction and grid sizes
• Can be completely covered with insulation
• Provides 70% average lumen maintenance at 50,000 hrs
• Provided with Push-in wire connector for easy installation
• Accommodate up to a 1" ceiling thickness
• Dimming range from 100% to 1%
• ANSI compliant Warm/Neutral LEDs
• 40° Visual cut off angle
• Replacement modules
• Far more resistant to vibration than incandescent or fluorescent downlights
• Hanger bars include a captive mounting “screw-nail' for ease of installation
• LEDs included
• Suitable for direct contact with insulation
• 3" Clearance on all sides must be maintained when insulation is present
• UL and cUL listed for damp locations

Specifications:

• Manufacturer provides a five year warranty
• Overall dimensions: 5.125" H x 3.875" W x 3.875" D

Features of 3" LEDme Downlight Remodel Non-IC Housing:

• Downlight remodel non-IC housing
• Available in 3000K or 4500K Color temperature
• Available in 350lm or 400lm Lumens
• LED Non-IC remodel housing use
• Input Voltage: 120V AC /60Hz
• Power Factor > 0.9
• Dimming with thermal protection
• Load: Max 3W
• Three heavy gauge inner retention clips push out onto ceiling or other mounting surface to firmly hold housing in place
• Seven knockouts and four non-metallic sheathed cable style wiring connectors provided for easy installation
• Rated for branch wiring
• Provides 70% average lumen maintenance at 50,000 hrs
• Provided with Push-in wire connector for easy installation
• Accommodate up to a 1" ceiling thickness
• Dimming range from 100% to 1%
• ANSI compliant Warm/Neutral LEDs
• 40° Visual cut off angle
• Replacement modules
• Far more resistant to vibration than incandescent or fluorescent downlights
• LEDs included
• Suitable for direct contact with insulation
• 3" Clearance on all sides must be maintained when insulation is present
• UL and cUL listed

Specifications:

• Manufacturer provides a five year warranty
• Overall dimensions: 5.125" H x 3.75" W x 3.75" D

Features of 3" LEDme Downlight Remodel IC Housing:

• Downlight remodel IC housing
• Available in 3000K or 4500K Color temperature
• Available in 350lm or 400lm Lumens
• LED Non-IC remodel housing use
• Input Voltage: 120V AC /60Hz
• Power Factor > 0.9
• Dimming with thermal protection
• Load: Max 3W
• Three heavy gauge inner retention clips push out onto ceiling or other mounting surface to firmly hold housing in place
• Seven knockouts and four non-metallic sheathed cable style wiring connectors provided for easy installation
• Rated for branch wiring
• Provides 70% average lumen maintenance at 50,000 hrs
• Provided with Push-in wire connector for easy installation
• Accommodate up to a 1" ceiling thickness
• Dimming range from 100% to 1%
• ANSI compliant Warm/Neutral LEDs
• 40° Visual cut off angle
• Replacement modules
• Far more resistant to vibration than incandescent or fluorescent downlights
• LEDs included
• Suitable for direct contact with insulation
• 3" Clearance on all sides must be maintained when insulation is present
• UL and cUL listed

Specifications:

• Manufacturer provides a five year warranty
• Overall dimensions: 5.125" H x 3.75" W x 3.75" D
